Specifications
Display panel | Brand | KEFANS |
Model | T121VX | |
Size | 12.1 inch 4:3 | |
Resolution | 1024*768 | |

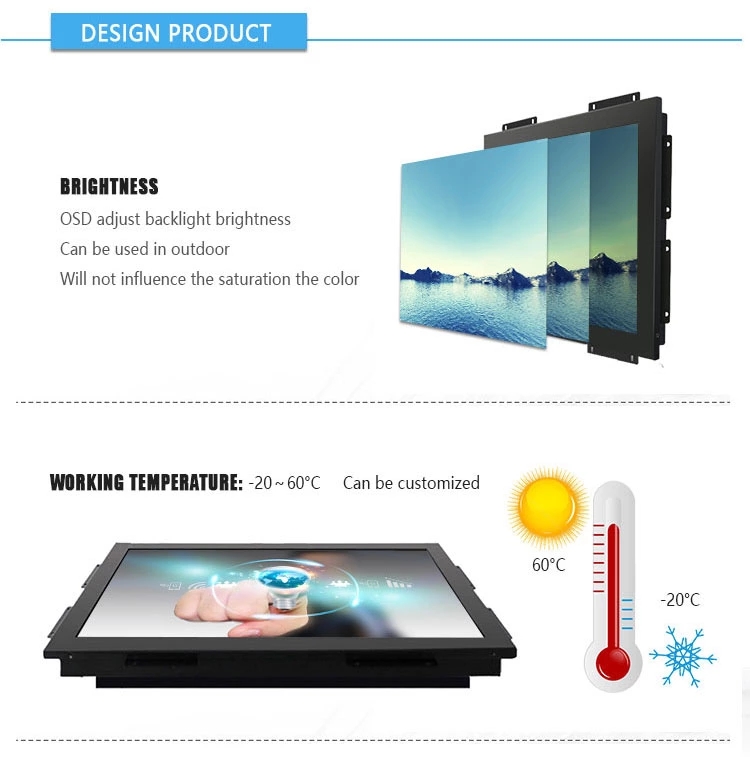

Brightness | 350cd/(Customizable outdoor highlighting) | |
Contrast | 800:1 | |
Display color | 16.7M | |
Response time | 2-5ms | |
Viewing angle | 75/75/60/65(Typ.CR≥10) | |
Pitch (mm) | 0.264(H)X0.264(V) | |
Quality | 3D noise reduction high definition signal progressive scan | |
Touch function | Touch screen | 5 line Resistance touch screen |
The surface hardness | ≥3H | |
Light transmittance | >90% | |
Positioning accuracy | less than 2MM | |
Click life span | >60 million times | |
Touch media | resistive touch pen, finger | |
Right click function | click on a point and press and hold for more than 3 seconds | |
Touch interface | USB (optional COM) | |
support system | Win7,win8,win10,Android,linux. etc. |
Motherboard features | scanning frequency | 60HZ |

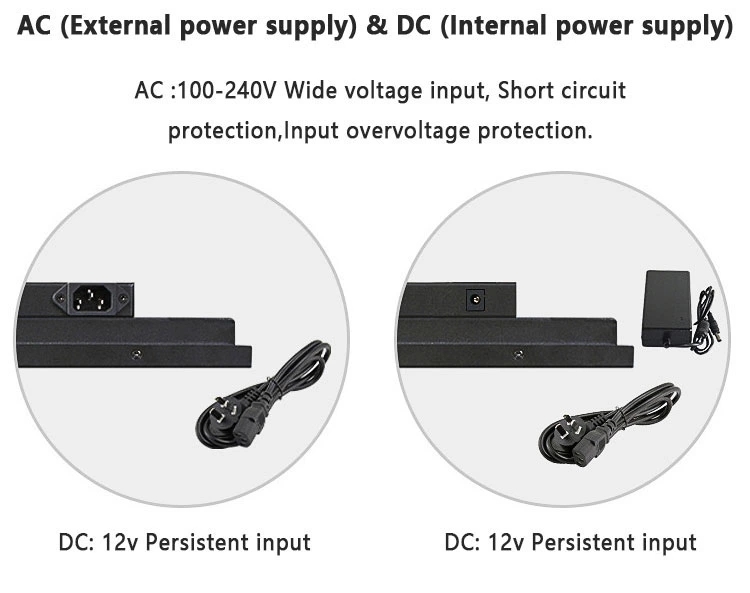

power input | DC12V (Customizable wide pressure 9-36V) | |
Functional interface | HD*MI/DVI/VGA | |
working environment | Working temperature | -10℃---+55℃ |
Storage temperature | -10℃---+60℃ | |
Equipment use | Applications | Military equipment, aerospace equipment, rail transit/communication, professional photography display, smart supermarkets, intelligent robots, smart conference rooms, factory assembly lines, POS cash registers, car GPS, elevator doors, commercial office buildings, exhibition sites, etc. |
Equipment cleaning | Cleaning method | Spray on the surface of the soft mirror cloth with screen cleaning liquid or water, wipe the screen, and do not wipe the screen with alcohol, strong acid or strong alkali. The outer casing can be wiped with a soft towel or a mirror cloth. |
product service | After-sales service | one year warranty |
Related certification | CE/ROHS/FCC | |
Customized service | material, appearance, form factor, wide temperature, outdoor highlight, wide voltage, etc., can be OEM/ODM |
