MC4043C | MC-H070 | MC-H070S | MC-H100 | MC-H100E | MC-H156E |
|
Programming software | Mochuanstudio | Mochuanstudio |
Compatible Labtop OS | Win7/ Win10/ Win XP | Win7/10/XP |

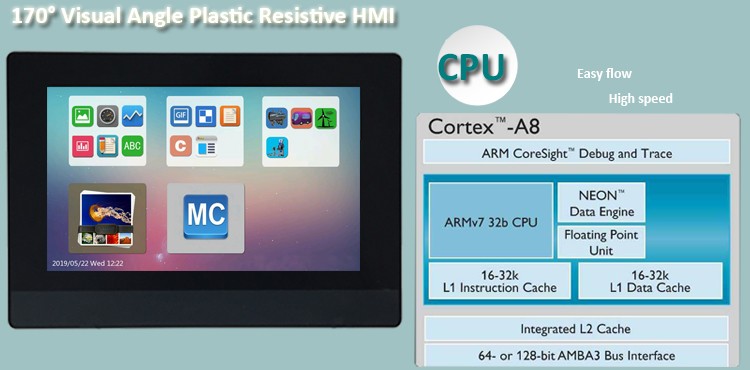

CPU | 600MH ARM Cortex-A8 | 1G ARM Cortex-A8 |
Touch scree | 4 wire resistive touch screen | 4wire resistive touch screen |

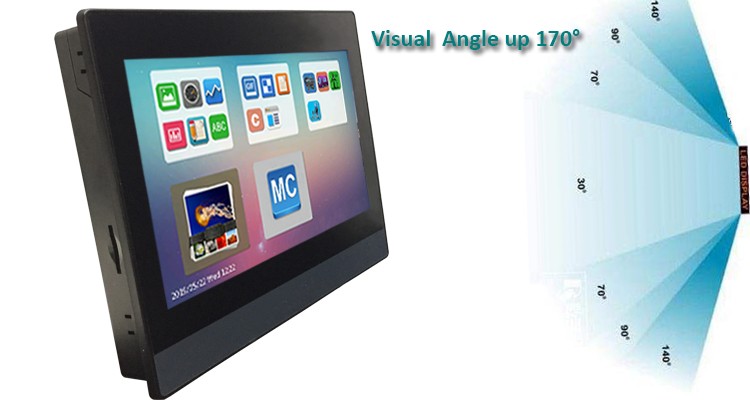

Screen Size | 4.3'' tft lcd | 7'' 16:9 tft lcd | 10.1'' 16:9 tft lcd | 15.6'' 16:9 tft lcd |
Resolution | 480x272 | 800x480 | 1024x600 | 1920x1080 |
Colors | 24-bit colors | 16-bits colors |
Brightness | LED | LED |
Backlight | 50,000 hours | 50,000 hours |
Storage | 128M Flash+128m DDR3 | 256M Flash+513M DDR3 |
SD card | N/A | N/A | support | N/A | support | TF card |

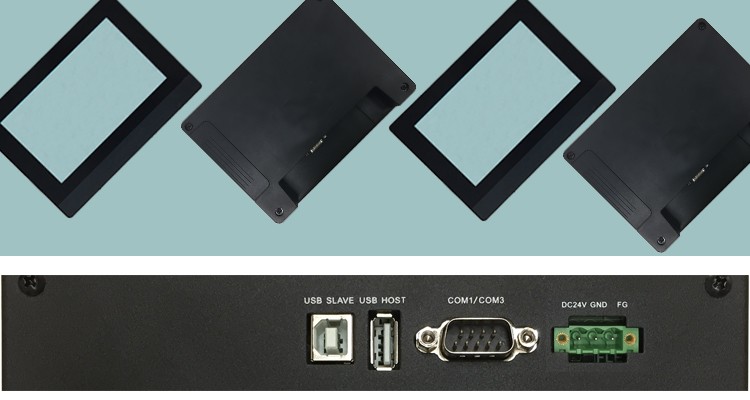

USB | USB Host2.0x1; USB Device 2.0x1 | USB host2.0x1; USB device 2.0x1 |
Ethernet | N/A | N/A | 1x10/100M | N/A | 1x10/100M | 2x10/10M |

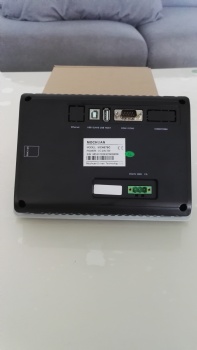

Serial Port | COM1:RS232/485/422 COM3:RS232 | COM1/COM3:RS232/485/422 COM2:RS485 | COM1:RS232/485/422 COM3:RS232 | COM1/COM3:RS232/485/422 COM2:RS485 | COM1:RS232/RS485/RS422; COM2:RS485 COM3:RS232 |
Working Power | DC24V, supporting working range: DC9V~28V | DC24V, DC18V~28V |
Power Consumption | <5W | <10W | <18W |
Power Down Allowed | <5mS | <5mS |

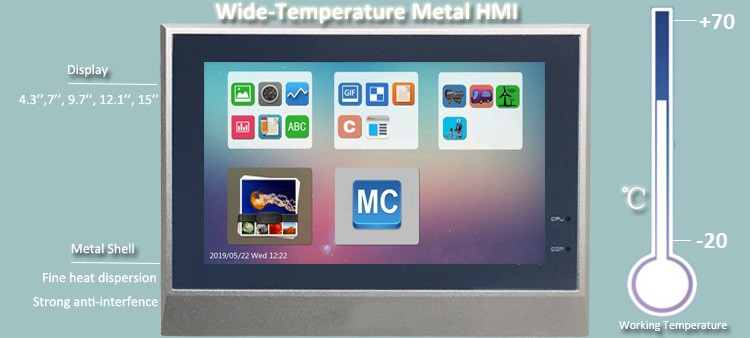

Working Temperate | 0~50℃ | 0~50℃ |
Storage Temperate | -20~60℃ | -20~60℃ |
Operating Humidity | 10~90% RH( No condensation) | 10~90% RH(No condensation) |
Vibration Endurance | 10~25Hz( X/Y/Z 2G/30Min) | 10~25Hz(X/Y/Z 2G/30Min) |
Portection Level | Front IP65( with NEMA panel), Back IP20 | Front IP65, Back IP20 |
Cooling | Natural air cooling | Natural air cooling |
Material | ABS | Aluminum alloy |
Panel cutout(mm) | 120x93 | 192x138 | 261x180 | 380x245mm or VESA install |
Dimension(mm) | 128x102x32 | 204x145x33.8 | 274x193x36.2 | 394x256x36mm |
Weight(g) | 500g | 560g | 890g | 920g | 2250g |
