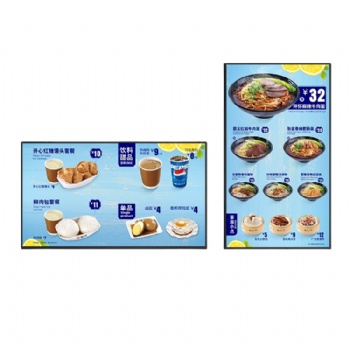

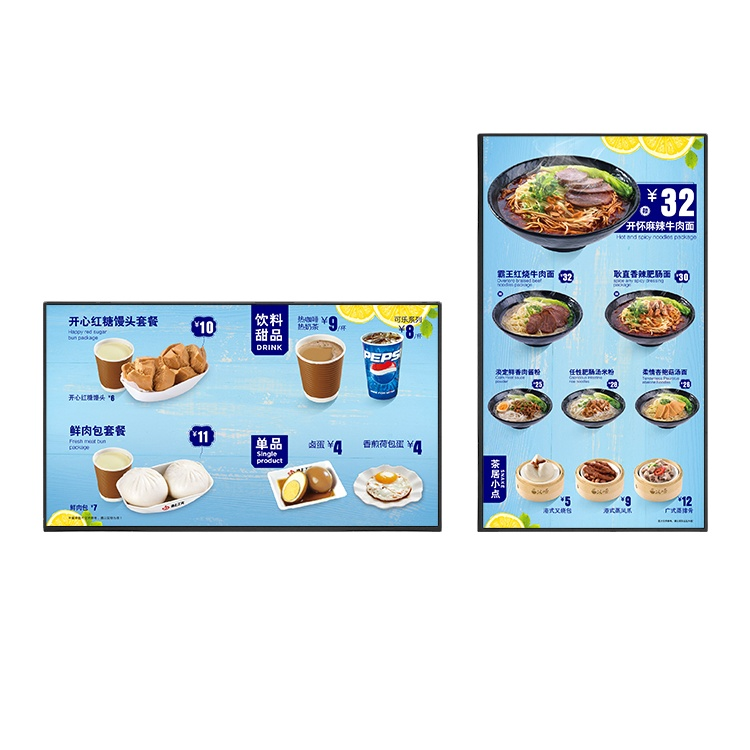

Screen Brand | LG Display | Model | digital menu board |
Screen size | 42'',43"（customized size） | Screen type | LCD module, a-Si TFT-LCD |
Resolution | 1920*1080 | Pixel configuration | RGB vertical strip |

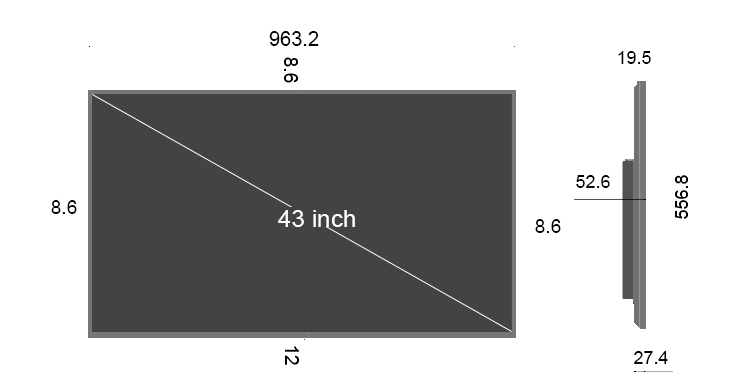

Display size | 941.184*529.416mm(H*V) | Dimension | 963.6*567.9*29.6mm(H*V*D) |
Visible size | 945.8*534.02mm(H*V) | Surface treatment | Matte (Haze 1%), Hard coating (3H) |
Brightness | 450 (cd/m2) | Contrast | 1100: 1 (Typ.) |
Optimum angle | Full view | Optical mode | S-IPS, normally black display, transmissive |
Viewing angle | 89/89/89/89 (Min.(CR≥10) | Response Time | 12 (Typ.)(Tr+Td) ms |
Colors | 16.7M , 68% [CIE1931] | Backlight type | 2 strings WLED, 50K hours, no drive |
Screen weight | 7.50Kgs (Typ.) | Touch function | No touch |
Refresh rate | 60Hz | Supply voltage | 12.0V (Typ.) |
Operating system | Android 6.0.1 | Running memory | 1G |
Output signal | LVDS,HDMI | Storage memory | 8G |
External interface | 2 USB, 1 TF card holder, 1 Ethernet interface, 1 DC-IN, 1 headphone jack |
Built-in interface | 2 USB, 1 MIC, 1 speaker, 1 antenna interface, 2 serial ports, 1 PER-KEY, 1 remote control, 1 TP-I2C |
