Single Systems Parameters :OPS(Optional win7/win10) |

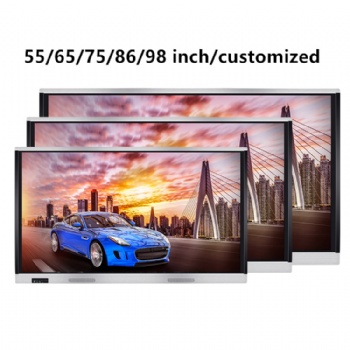

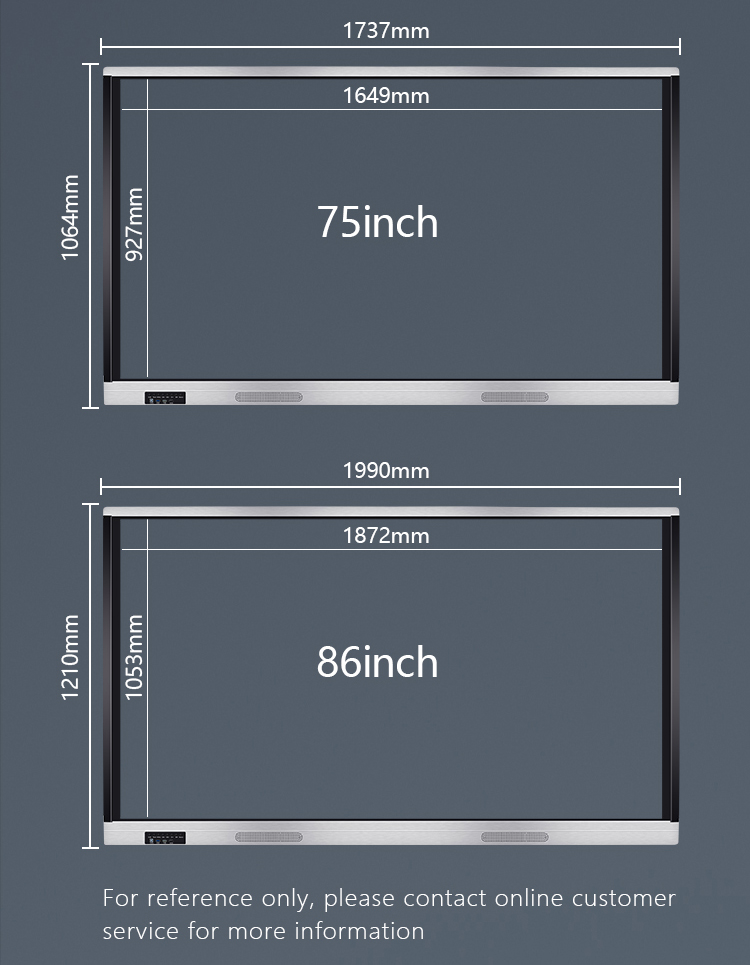

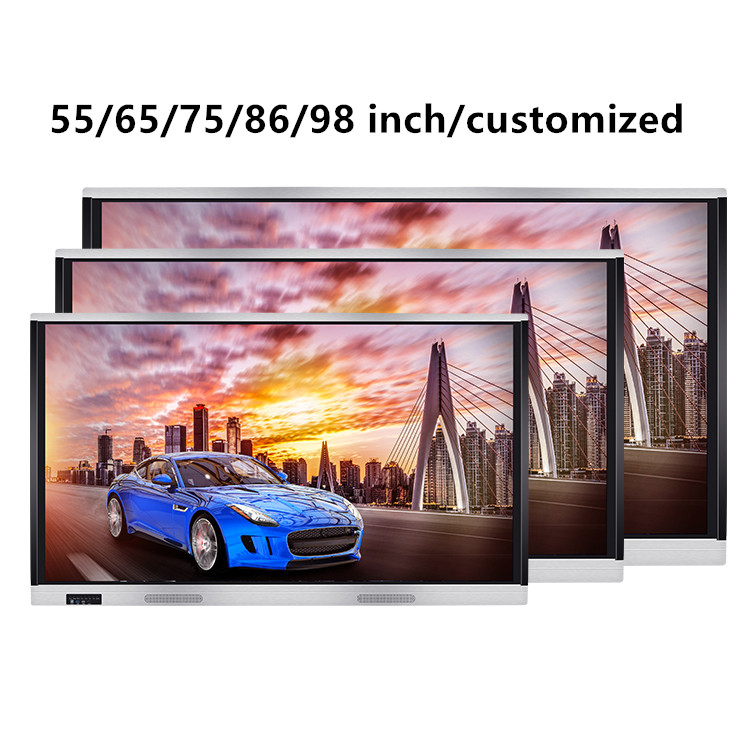

Type | 65 inch(55 75 86 98 inch ) | CPU | Intel i3/i5/i7 optional |
touchscreen guarantee | 100% A+ original panel | Android OS | Android 5.1(customized) |
Memory RAM | 4G DDR1333/1600 Kingston | Backlight | DLED |
Resolution | Ultra clear 4K 3840*2160P | Scanning Frequency | 60 Hz |
Viewing angle | 89/89/89/89(Typ.)(CR≥10) | Type of display | LED |
Response time | 3ms | Brightness | 400(cd/m2) |
Body material | Aluminum Alloy+Hardware | Touch material | Fingers,stylus,gloves or any other opaque material medium |
Touch point | 20/40 point IR touch | Contrast ratio | 1400:1(Typ.) |
Working temperature | -10-60℃ | Storage temperature | -20-70℃ |
Input Voltage | 100-240Vac.Max 90Vac-264Vac 50/60Hz | Power consumption | 100-280W |
Recognizale object | ≥Φ5mm opaque object | Glass type | 4mm Glass type |

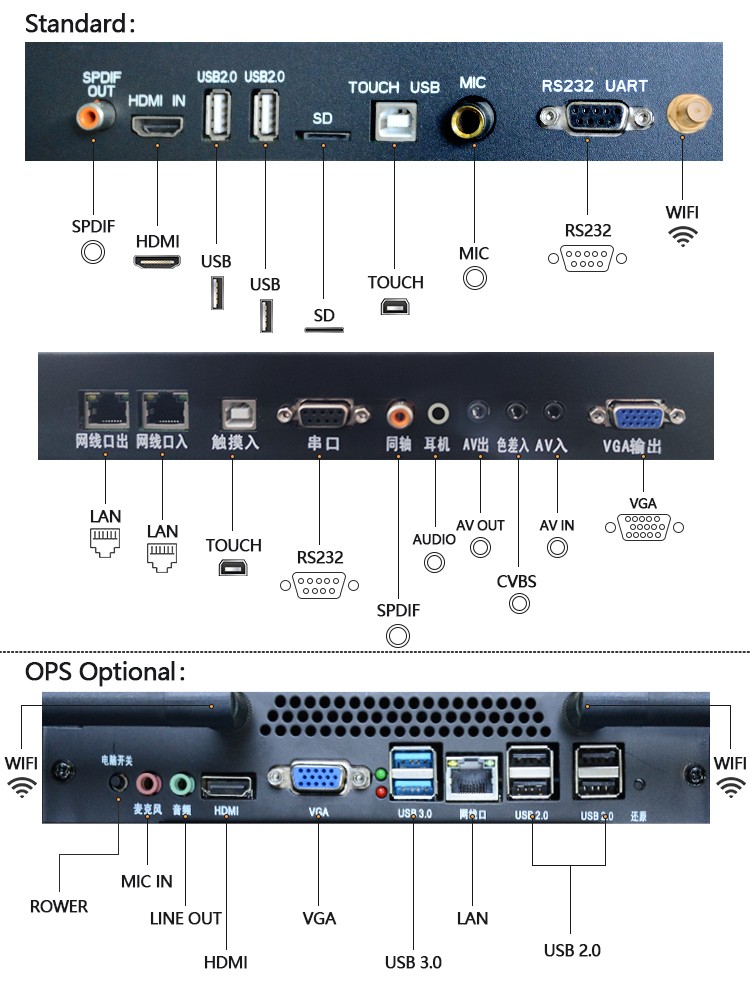

Front ports | Infrared touch port*1;HDMI*1,PC-USB3.0*1;TV-USB2.0*1;Audio in*1;VGA*1; |
Back ports | USB2.0*1; HDMI*1;VGA in *1; VGA Audio in*1; AV1*1;AV out *1;earphone*1;RF*1; |
Back PC ports | HDMI*1;USB3.0*2;USB2.0*2;VGA*1;network output*1;HDMI*1;USB3.0*2;USB2.0*2; VGA*1;network output*1;Microphone in*1 |
